DC Power Line Attenuator

for emulating DC communication channel with variable TX signal attenuation levels

The DC power line attenuator is a testing tool that attenuates the DC-BUS devices carrier in steps between 0 to 71 dB emulating DC power line.

Description

The communication between two (or more) DC-BUS devices can be attenuated in steps between 0 and 71dB keeping the DC voltage unchanged. The Attenuator has two BNC connectors coupled by capacitors in both sides of the Attenuator allowing to inject external noise to the power line or to monitor the signal with an oscilloscope.

Using this tool allows testing the communication in extreme attenuation levels in a lab environment.

Features

Attenuation: 0-71 dB.
Max Operating voltage: 40Volt.
Max Operating current: 1 Amp.
Frequency range: 1.5 - 15 MHz.

Applications

Attenuate the DC-BUS powerline communication signal.
Testing the performance of a new DC-BUS application.

PRICING

$980

Pricing

€980

Payment

Money transfer to Yamar's bank account

Credit Card (Visa/MC/AMX) + 2.7%

Related products

Read more +07 July 2020 By Eran Priel in Products, sig100-evb, SIG10X

SIG100 Evaluation Board

Read more +07 July 2020 By Eran Priel in Products, SIG100 IC, SIG10X

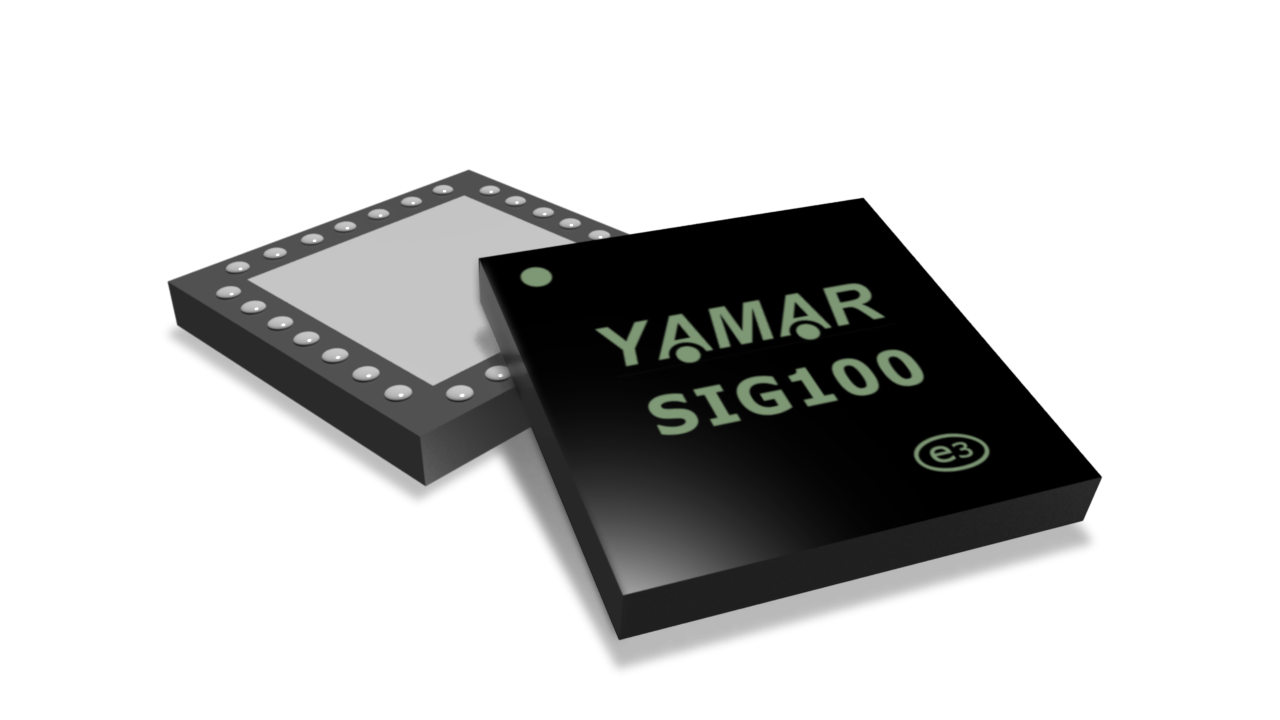

SIG100 – UART/LIN Transceiver over DC Power line

Read more +22 April 2020 By Eran Priel in DCB, DMX250, DMX_IC, Products

DMX250 IC – DMX512 & RDM PLC Transceiver

Read more +22 April 2020 By Eran Priel in DCB, DMX250, DMX_EVB, Products

DMX250 Evaluation Board

Read more +24 September 2019 By yair@yamar.com in Products, SIG102_IC, SIG10X

SIG102 IC – Multi I/O Control over DC Power line Network

Read more +24 September 2019 By yair@yamar.com in Products, SIG102_EVB, SIG10X

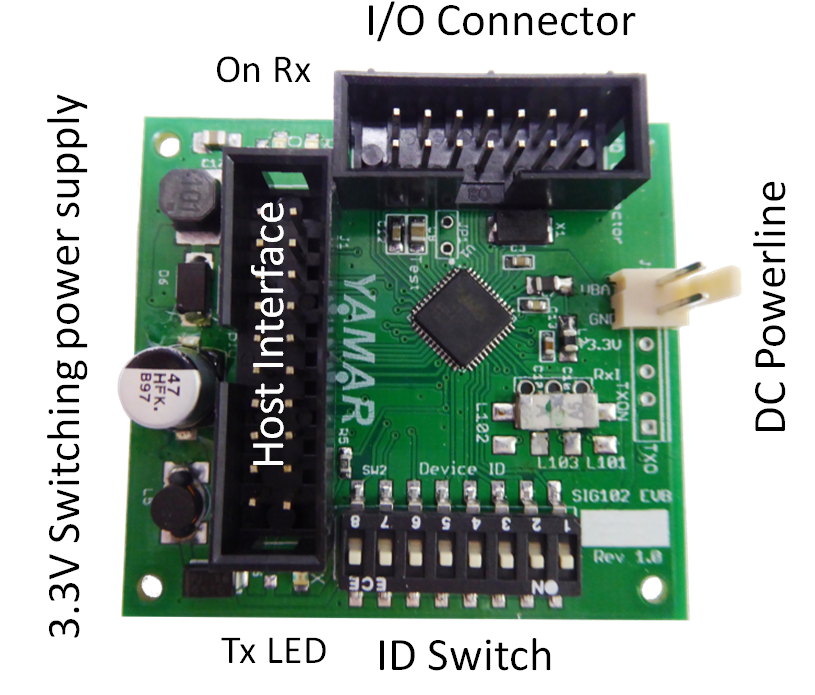

SIG102 Evaluation Board
